EUV metrology

© Fraunhofer ILT

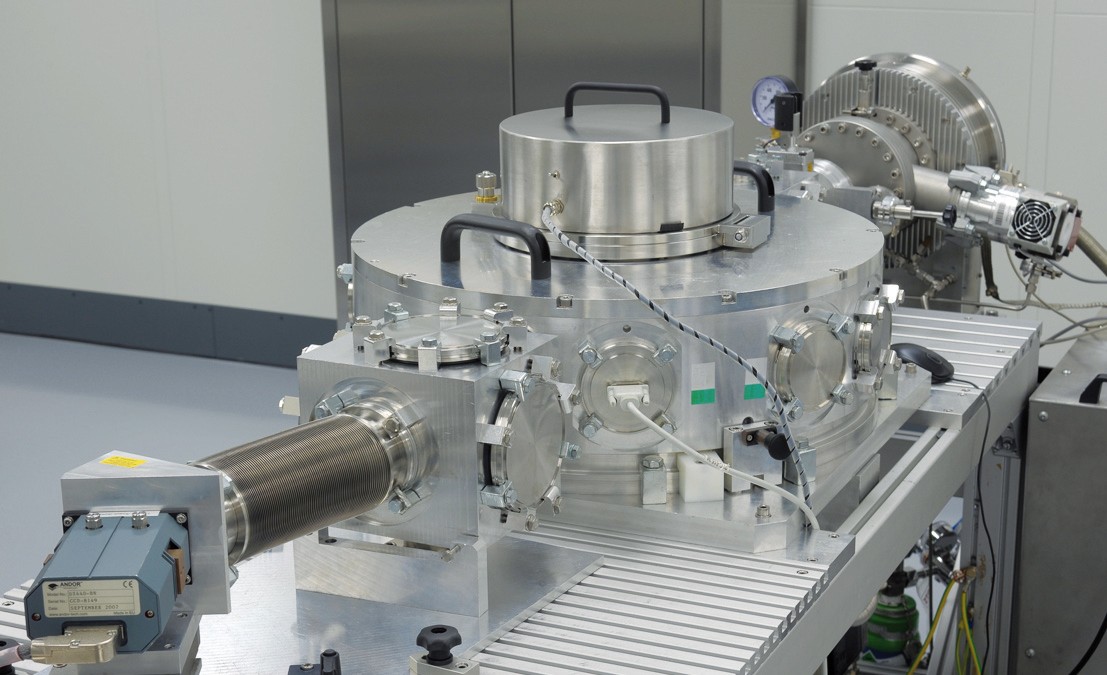

Owing to the short wavelength of EUV light, developing semiconductor lithography into its spectral range entails enormous demands on the quality of surfaces and layers. Fraunhofer IOF has developed a process which enables it to characterize EUV mirror substrates over a large area with great sensitivity before they are coated. In addition, it has developed a system to characterize – specific to a wavelength – the reflection and scattering properties of EUV layer systems at 13.5 nm. Together with the existing modeling techniques and EUV system technologies of the Fraunhofer ILT, this results in a closed chain for the characterization of EUV components.
