Transparent 3D microcomponents assembled

© Fraunhofer ILT, Aachen

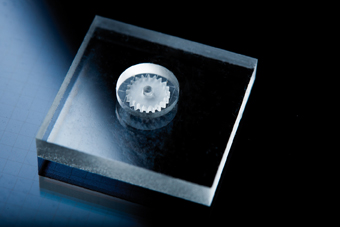

Gear wheel measuring three millimeters in diameter mounted on a shaft, made from a single block of fused silica using the ISLE technique
© Fraunhofer ILT, Aachen/Volker Lannert

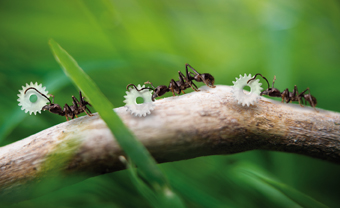

Illustration of the size of an ISLE-manufactured micro gear wheel

In cooperation with the Chair for Laser Technology LLT at RWTH Aachen University, a new laser manufacturing technique was developed at Fraunhofer ILT. The technique shortens the manufacturing process for micro components made from transparent materials and reduces the amount of material and energy used. Now the experts have applied in-volume selective laser etching (ISLE) to the manufacture of composite and assembled parts. This means there is no longer any need to adjust and assemble the individual components in micromechanical systems. The exposure time for a gear wheel already mounted on a shaft and fitted inside a housing is only around 15 minutes using the ISLE technique.

The ISLE-Process:

The process works as follows: using ultrashort pulsed laser radiation, a transparent work piece is exposed in the volume with 3D resolution at precisely the areas where material is to be removed. The material is chemically and physically changed and therefore gets selectively etchable. In the subsequent wet-chemical etching process, the exposed material is removed, while the unexposed material is scarcely affected by the etching process. This process makes it possible to manufacture micro channels, shaped holes, structured parts, and complex, composite mechanical components and systems. The ISLE technique can also be used for sapphire and glass as well as ruby. It is reproducible and ensures that components are geometrically identical in series production, while also offering a high degree of geometric and design freedom. Particularly impressive are its ability to produce shapes with micrometer accuracy, as well as kerfs and bores with extremely large aspect ratios, thanks to the small focus volume. The ISLE technique enables a level of material and energy efficiency that is simply not possible to obtain mechanically using even the most advanced ablative processes.

Scaling the laser manufacturing technique for industrial application :

The main challenge facing the researchers in Aachen now consists in developing the ISLE technique so that it can be used by the manufacturers of micro components. “We are constantly working on improving the scalability of our technique so that a transfer from the lab to industrial-scale production can take place sometime in the future,” explains Dr. Dagmar Schaefer, group manager at Fraunhofer ILT. “The ISLE technique is individually adapted to the customer’s requirements according to the specific application. The biggest challenge for us is to achieve both the required component specifications and a sufficiently rapid structuring process at the same time.”

The exposure speed is currently several hundred millimeters a second. The goal is to increase this to several meters a second. At present, exposing a mounted gear wheel with a diameter of three millimeters would take 15 minutes; the higher exposure speed would reduce this time by a factor of 10.
